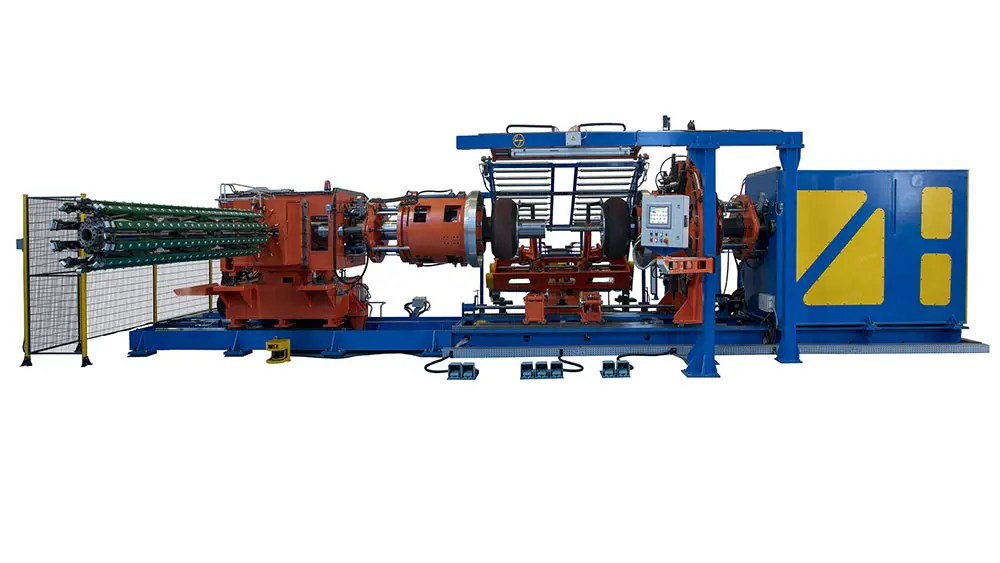

Tyre Building Machines
All Products- Pictures
Range
Machines for building conventional / I Stage Radial and II Stage Radial Tyres.
Features
- Fully automatic operation through programmable logic controllers
- Bladder turn-up systems for two/three wheeler, passenger car and light truck tyre building machines
- Option of inertia or radially expanding drums on passenger car / light truck tyre building machines
- Spring finger ply down on passenger car / light truck tyre building machines
- Spring belt / tool ply down for truck and bus tyre building machines
- Option of ply / band method for tyre building
- Transfer ring / Breaker ring method for second stage passenger car / light truck tyre building
PRODUCT INFORMATION
| MODEL | L 11 W | LCB 1216-SP-88 | LFB 1216-SP-88 | LC 2022-D-59 | L 2024-D-95 | LRP 1016 |
|---|---|---|---|---|---|---|
| APPLICABLE TYRE | 2/3 Wheeler | Passenger/ Light truck | Passenger/ Light truck | Truck & Bus | Truck & Bus | Passenger/ Light truck |
| NOMINAL BEAD SIZE RANGE (Inches) | 5 - 12 | 12 - 16 | 12 - 16 | 18 - 24.5(Single) 20 - 22 (Double) | 17 - 24.5(Single) 20 - 24 (Double) | 10 - 16.5 |
| TYRE CONSTRUCTION | Bias | Bias/I Stage Radial | I Stage Radial | Bias / I StageRadial | Bias/ I Stage Radial | II Stage Radial |
| TYPE OF DRUM | Radially Expanding | Inertia / Radially Expanding | Inertia / Radially Expanding | Inertia | Inertia | Bladder/Bladderless |
| DRUM SHOULDER SET RANGE (MM) | 203 - 584 | 230 - 660 | 230 - 660 | 381 - 737 | 457 -1017 | 250 - 600 |
| MAX. DRUM UNDERCUT FOR DUAL BEAD) MM | - | - | - | 38 | 38 | - |
| MAX. DRUM CROWN HEIGHT (FOR DUAL BEAD) MM | - | - | - | 73 | 73 | - |
| MAX. PLY WIDTH (MM) | 762 | 990 | 990 | 1117 | 1524 | - |
| MAX. PLY OVER HANG (EACH SIDE) MM | 89 | 165 | 165 | 228 | 254 | - |
| PLY DOWN | - | Spring Finger | Spring Finger | Spring Belt | Tool/Spring Belt | - |
| TURN UP | Single Bladder | Single Bladder with push can | Single Bladder with push can | Tool | Tool | - |
