The extensive range covers units for use with tyres of passenger cars, light trucks, trucks and off-the-road equipment.
These post cure inflators are of two types:

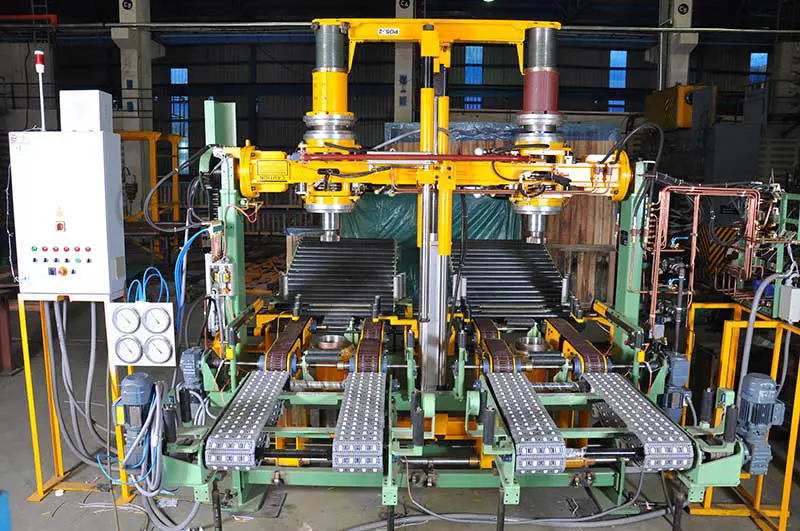

These units are installed at the rear of tyre curing presses, to receive the cured tyres from the presses. The tyres are cooled to ambient temperature under controlled air pressure to avoid distortion of plies. After cooling, tyres are discharged onto the takeaway conveyor rollers. Post cure inflators are available in 2-position and 4-position designs, which allow for inflation time equivalent to curing time and double the curing time respectively.
These units are located in the curing area and cured tyres are loaded into these units. Tyres are cooled to the ambient temperature under controlled air pressure and are manually discharged from these units.
150-36-L2 | 160-48L1 | 42/45P18 | 48P4 | 55P2L1 | 63-1/2PL1 | |
---|---|---|---|---|---|---|
Type | 2- Pos. | 2-Pos. | 4-Pos. | 4-Pos. | 4-Pos. | 4-Pos. |
Max.Inflation Air Pressure (kg./sq.cm) | 14 | 10.50 | 7 | 7 | 10.5 | 14 |
Max – Min. Tyre Dia (mm) | 914 - 711 | 1219-686 | 981-445 | 1067-584 | 1118-762 | 1384-914 |
Max. – Min. Bead Dia (in) | 16-12 | 2415 | 20-10 | 22-12 | 24.5-15 | 24-16 |
Max – Min Bead width (mm) | 254-127 | 216-140 | 203-102 | 203-102 | 216-178 | 286-178 |
